Model: SA709563 (B20W)

LEDADVANTAGE is now bringing you the next generation in boating/marine underwater lighting from quality marine manufacture AquaIDEA.

A stunning marine-grade LED underwater light designed to increase the value of any vessel and attract squids, fish and other marine life to the water’s surface for a great ‘on the water’ experience and attract the eyes of fellow boating enthusiasts.

AquaIDEA's COB (Chip On Board) feature allows multiple LED chips to be packed together working as a single lighting module providing a brighter lighting experience then ever before. Built to last, these are manufactured  in Japan and are sold world-wide. Ideal for installation of boat transoms and trim tabs.

Designed and manufactured to the highest quality standards. Enclosed within a 100% fully sealed (Waterproof & Submersible)

Quick Product Specs:

Sealed watertight construction, ideal for underwater lighting and trim tab lighting.
Primary spot output is 60° from mounting surface and diffused lens produces a 120° light output.
Manufactured in Japan.
Protection Rating: IP68.
2m pre-wired cord.
Installation hardware included.
Mounting diagram included.

NOTE: Designed for underwater use only, these lights are cooled by water.

* To change the RGB settings, rapidly press your on/off switch to change between the 11 preset RGB modes. To reset to the defualt setting switch the lights off for 3-6 seconds and turn them back on. Refer to instrustion manual.

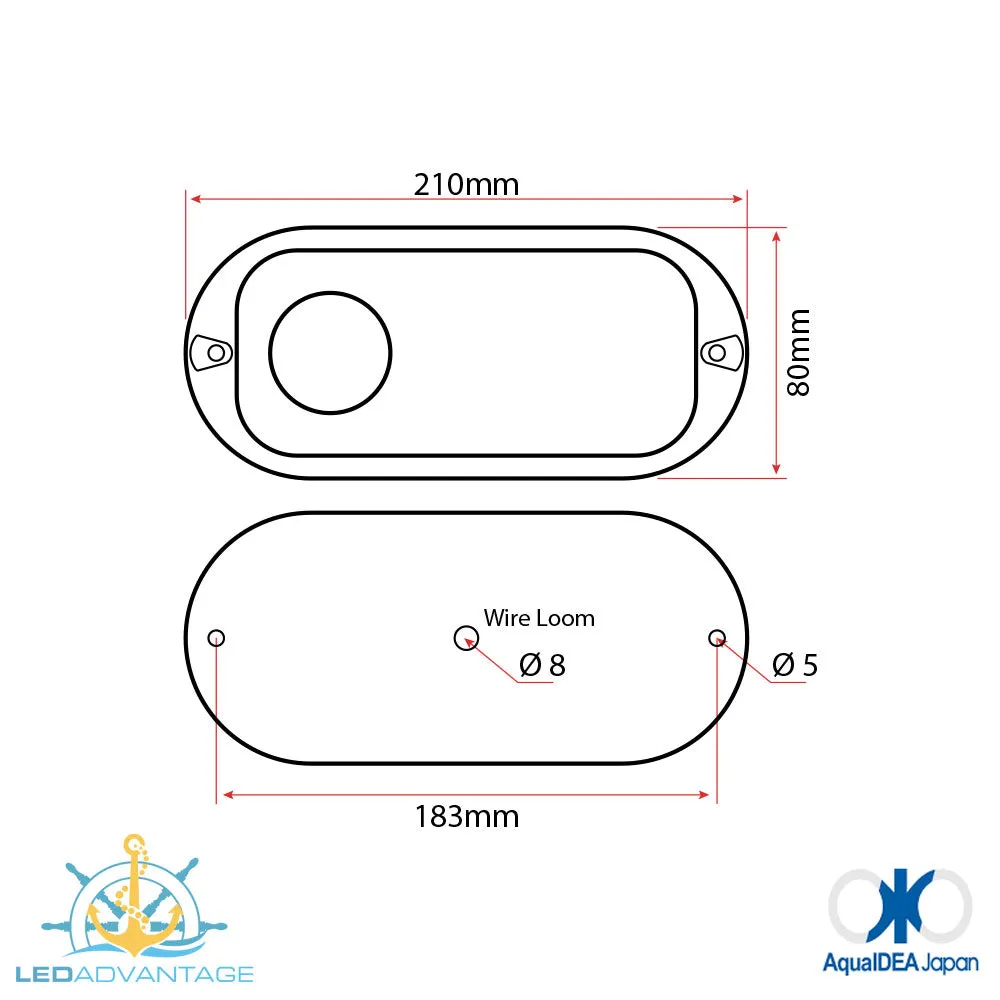

Dimensions: 210mm (Width) x 80mm (Height) x 35mm (Depth)
Housing: PA/ Epoxy Resin/Tempered Glass
Max Watt: 20W RGB COB LED, 12V
Protection Class: IP68 20m Standard / IEC60598
LED colour: RGB
Wattage Draw: 1.66 Amps
Cord Length: 5M with fuse & waterproof connector kits
Light angle: 60-90 degree
Illumination: 2000lm
Mounting: Screw surface mounting
Environment: Boat/Jet Ski/Yacht
RGB System: Preset 11 colour changing modes controlled by Power On/Off switch (Please note kit does not come with on/off switch)

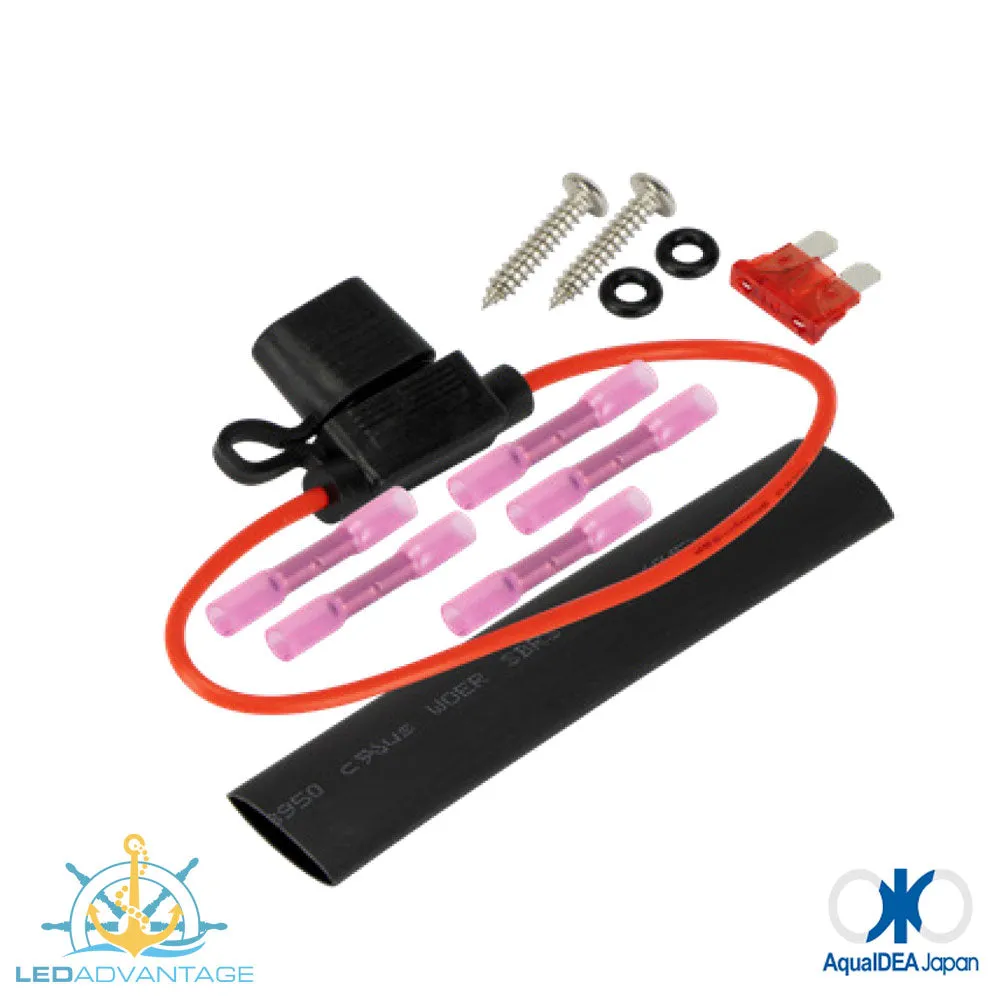

Contents:
B series Underwater Light
Stainless steel mounting hardware.
Rubber washers
Fuse holder
Butt splice terminals

* Amounts in the kit will change depending on the B series Underwater Light.
