Designed for lighting professionals, COB Series Pro Kits contain all of the essential installation components needed for basic single color linear lighting systems - just add a controller or dimmer and you’re all set. Speed installations by taking out the guess work and questioning compatibility.

Features

• Wattage: 5W per ft.

• Voltage: 24V
• Color Temperature/Lumens:
  •  2700K / 369 Lm per ft.,
  • 3000K / 409 Lm per ft.,
  • 4000K / 460 Lm per ft.

• CRI: 90

• Dimming: TRIAC / ELV (5-100%)

• Beam Angle: 120°
• Cut Increments: Every 1.97"
• Max Run: 16.4 ft.
• Ready to install 24V DC tape light pro kit

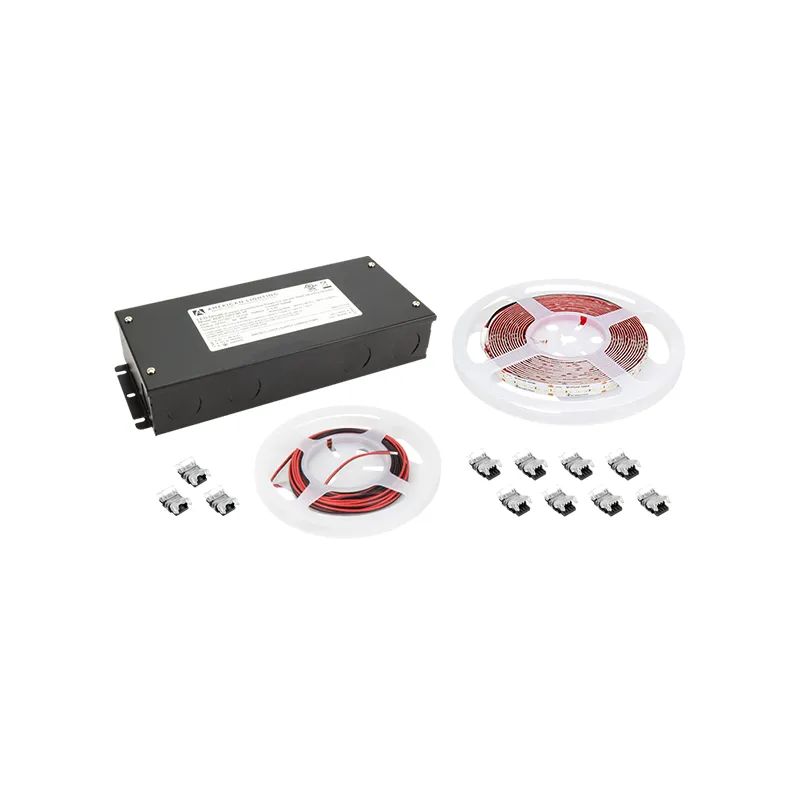

• COB Pro Kits Include:
  • 24V ADPT 96W Power Supply x 1,
  • 15ft (20/2) Wire Spool x 1,
  • HD Power Feeds x 8,
  • HD Splice Connectors x 3

• IP 20 rated


Dimensions

• Length: 16.4 ft
• Width: 0.39"

• Height: 0.06"

Estimated Life

• 50,000 hours

Warranty

• 5-Year Warranty
