Product Details
＋

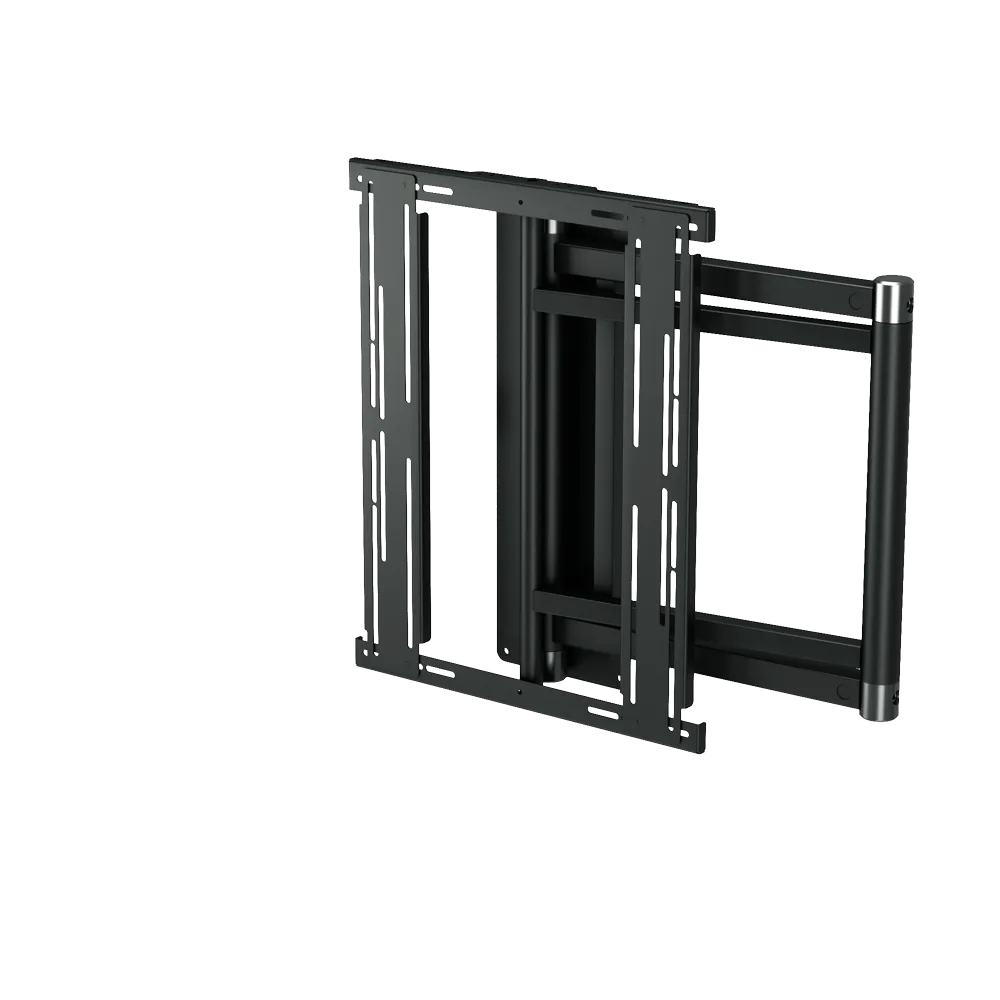

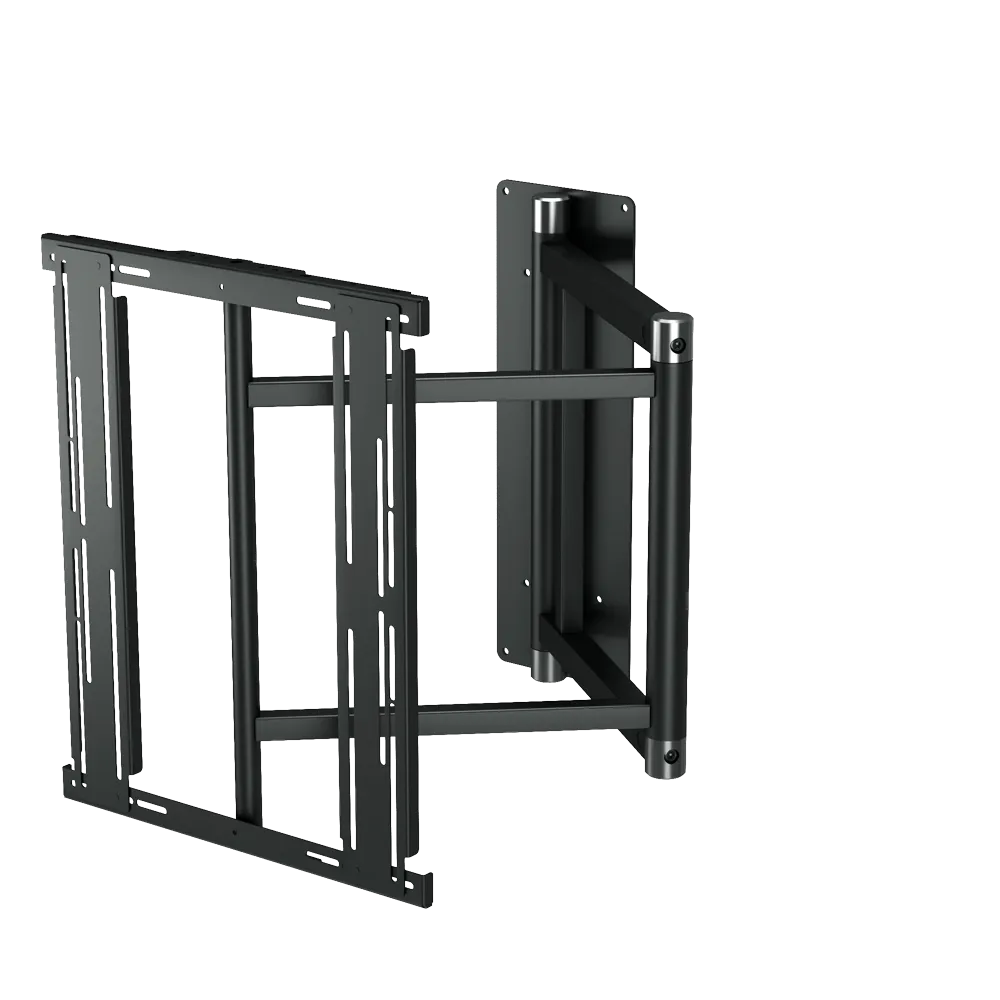

The Double Arm bracket is a bespoke, made to order manual TV articulating bracket that allows a screen to be pulled forward and rotated over 90 degrees in either direction (screen width dependant). Available in 4 standard sizes, or in custom lengths up to 1 meter (39"), the Double Arm TV Bracket is the ideal problem solver for when one of our standard sized brackets does not suit. Our design team will customise the length of each arm to ensure the solution offered exactly matches the criteria of the installation.
- Solid steel construction holds display securely
- Brushed Aluminium caps for superb aesthetic finish
- Custom cut arms to any length up to 500mm(19.68") per arm available
Specifications:
| PRODUCT CODE | DA1 | DA2 | DA3 | DA4 |
|---|---|---|---|---|
| BOLT PATTERN (VESA) | UP TO 200 X 200 | UP TO 400 X 400 | UP TO 400 X 400 | UP TO 600 X 600 |
| DEPTH FROM WALL | 125MM (4.92") | 105MM (4.13") | 105MM (4.13") | 110MM (4.33") |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 CAPS - BRUSHED ALUMINIUM |
BLACK PAINT - RAL 9005 CAPS - BRUSHED ALUMINIUM |
BLACK PAINT - RAL 9005 CAPS - BRUSHED ALUMINIUM |
BLACK PAINT - RAL 9005 CAPS - BRUSHED ALUMINIUM |
| MAX EXTENSION | 800MM (31.49") | 800MM (31.49") | 800MM (31.49") | 1000MM (39.37") |
| MAX WEIGHT | 30KG (66LBS) | 30KG (66LBS) | 30KG (66LBS) | 30KG (66LBS) |
| MOVEMENT TYPE | MANUAL | MANUAL | MANUAL | MANUAL |
