Geyserwise TSE functionality

Use as a geyser timer

• Clear display of water temperature, time, day, heating mode and malfunction     conditions.
•  Auto or manual heating.
•  Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
•  Four different temperature settings.
•  Daily programmable timer with four time settings.
•  Error conditions alert by warning code E2 to E5.

Use as timer on a thermosyphon solar system

• Clear display of water temperature, time, day, heating mode and malfunction conditions  on solar system and geyser.
• Auto or manual heating.
• Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
• Four different temperature settings.
• Daily programmable timer with four time settings.
• Error conditions alert by warning code E2 to E5.

Technical parameters

•   Operating voltage 230VAC / 50HZ.
•   Main Relay contact rating 30AMP (Max 4KW).
•   Operating voltage range 160V – 250V AC.
•   Earth leakage protection at 25MA action time <= 0,1 second.
•   Temperature display range 0 - 99°C ("-5" when below -5°C "EA" when above 99°C).
•   High temperature warning above 84°C.
•   Temperature setting ranges 30 - 65°C (Heating water electrically).
•   Heat failure – when increase at a rate of less than 4°C per hour.
•   Mechanical thermal cut-out at 90°C.
•   Dry heat detection – empty cylinder.
•   Temperature tolerance ± 2%.
•   Temperature differential setting 1°C.
•   Switching differential 6°C.
•   Temperature probe failure detection for tank.
•   Temperature probe range for geyser is -30 to 130°C.
•    Isolate both L N when in off state.

Please note the cut-out temperature for systems expected to reach temperatures above this temperature.

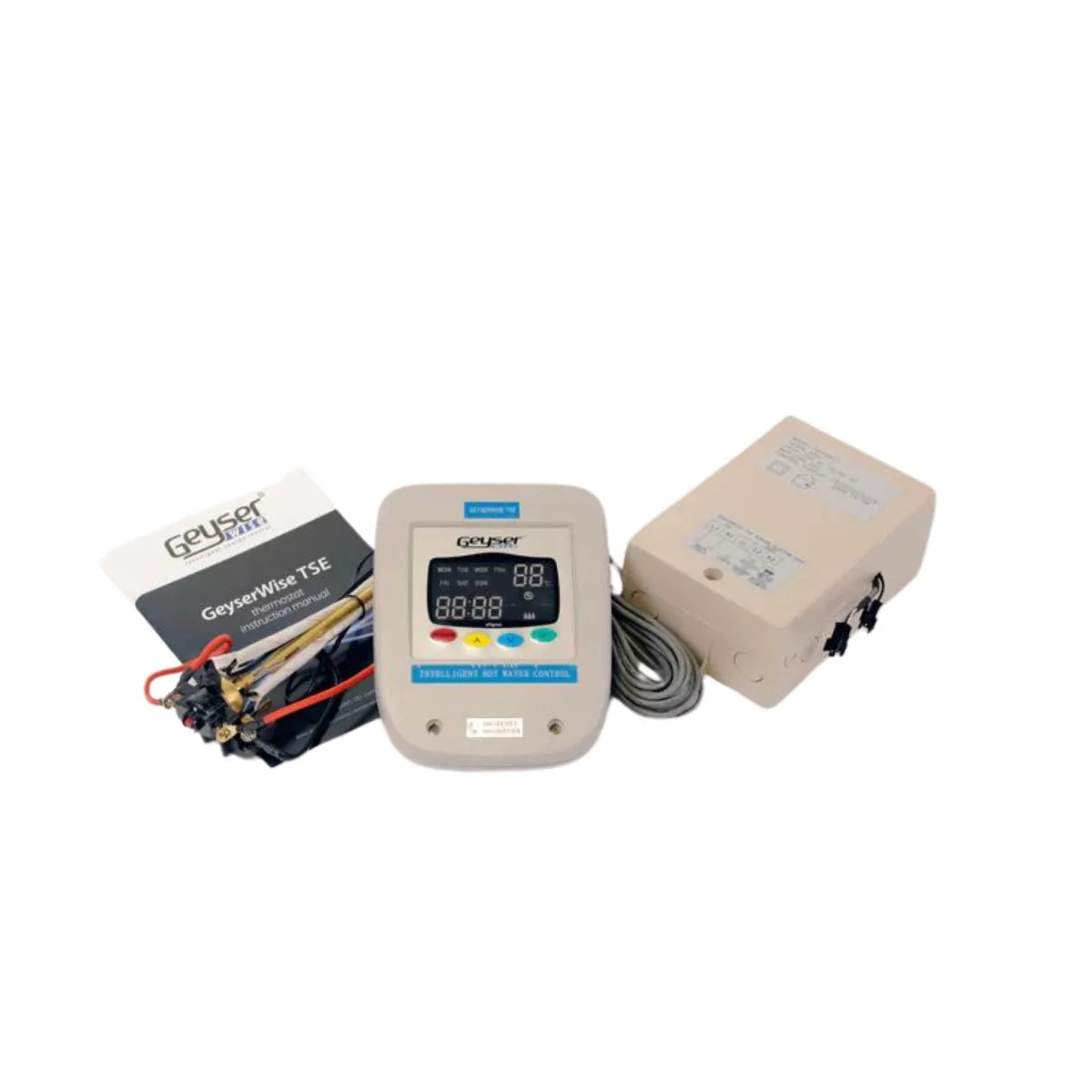

PACKAGE CONTENTS

• 1 x Display Unit
• 1 x Power Supply (control box)
• 1 x Thermostat with probe sensor
• 1 x 5m Remote Connection Cable
