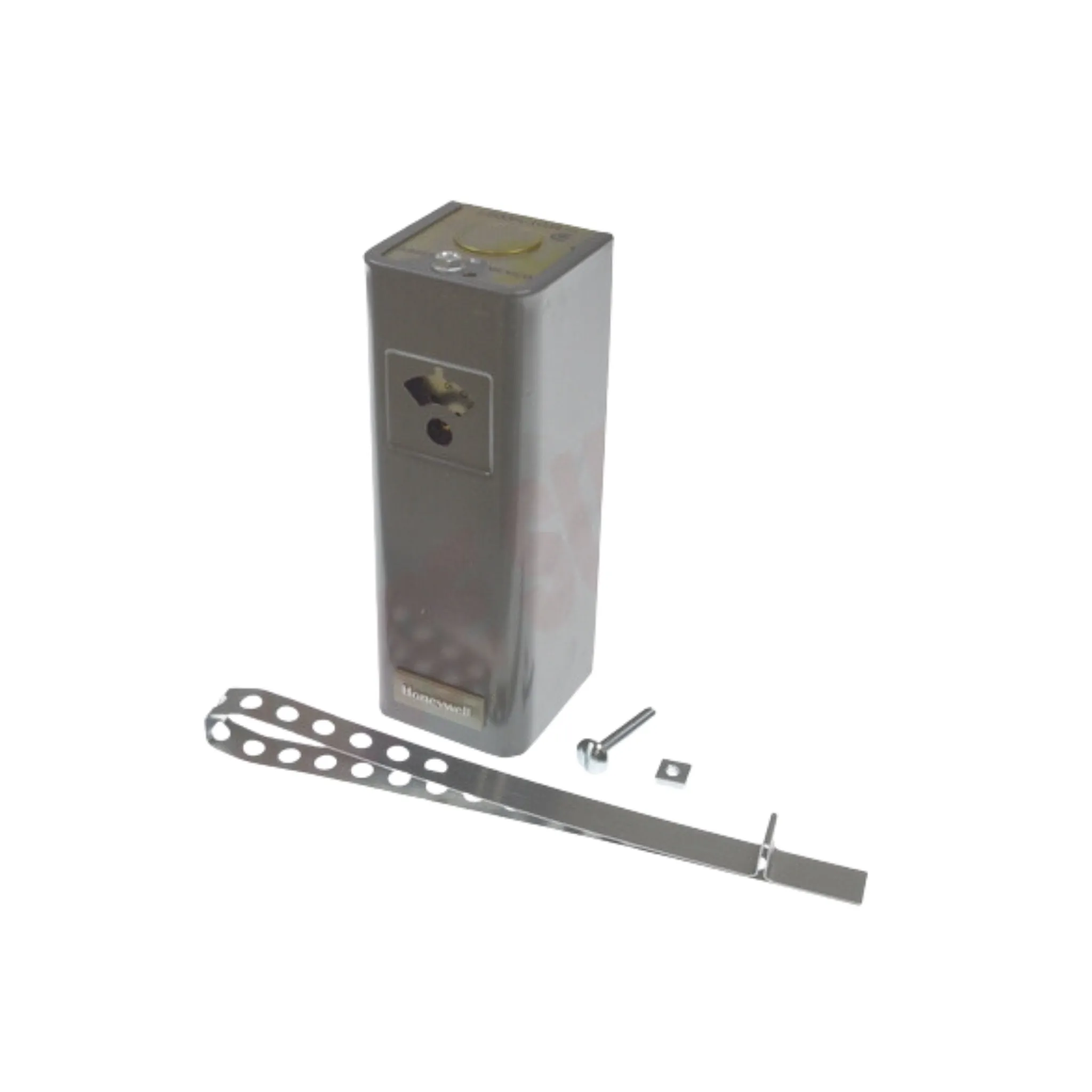

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.

Features:

Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to set point.
Visible control point scale and external adjustment screw permit easy setting.
Horizontal or vertical insertion of the sensing element.
Direct, well immersion, or surface mounting of the sensing element available.
Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
Select direct or well immersion models include heat-conductive compound.
Select models have wells.

Specifications:

Manufacturer: Resideo/Honeywell
Manufacturer Part Number: L6006C1034
Hazmat Information: UN 1294, TOLUENE, 3, II
Application: Circulator Control and High Limit or Low Limit
Dimensions (in.): Case--5 5/8 in. high x 2 in. wide x 2 3/4 in. deep
Dimensions (mm): Case--136 mm high x 51 mm wide x 70 mm deep
Temperature Range (F): Maximum--150 F
Temperature Range (C): Maximum--66 C
Mounting: Horizontal or Vertical
Electrical Ratings: Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
Operating Temperature Range (F): 65 F to 200 F
Operating Temperature Range (C): 18 C to 93 C
Bulb Size (in.): 3/8 in. x 2 7/8 in. copper
Bulb Size (mm): 10 mm x 73 mm copper
Differential Temperature (F): 5 F to 30 F adj.
Differential Temperature (C): 3 C to 17 C adj.
Switching Action: SPDT
