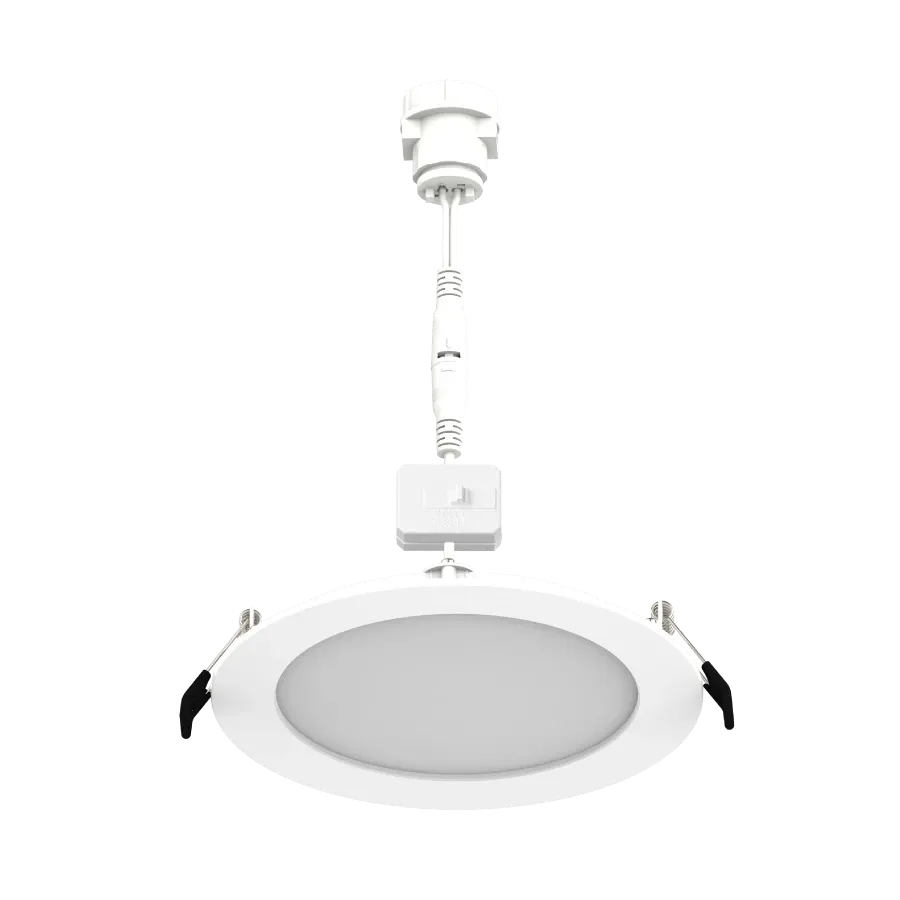

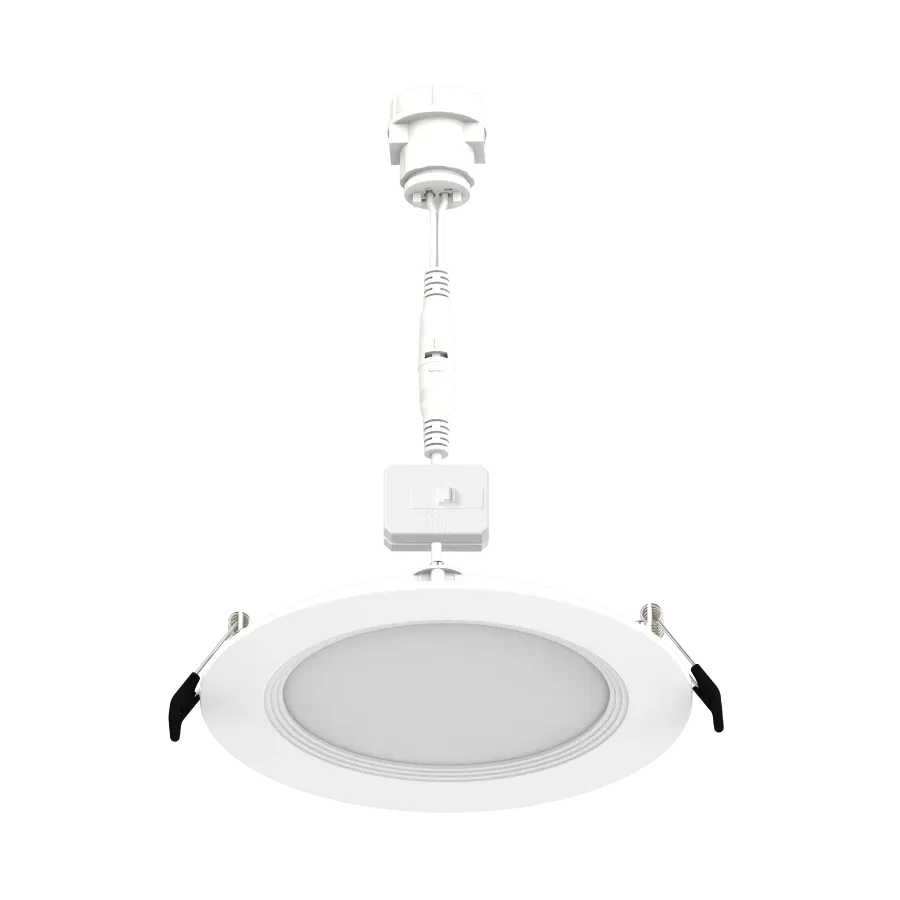

6" 11W Wafer DasiyChain Connect

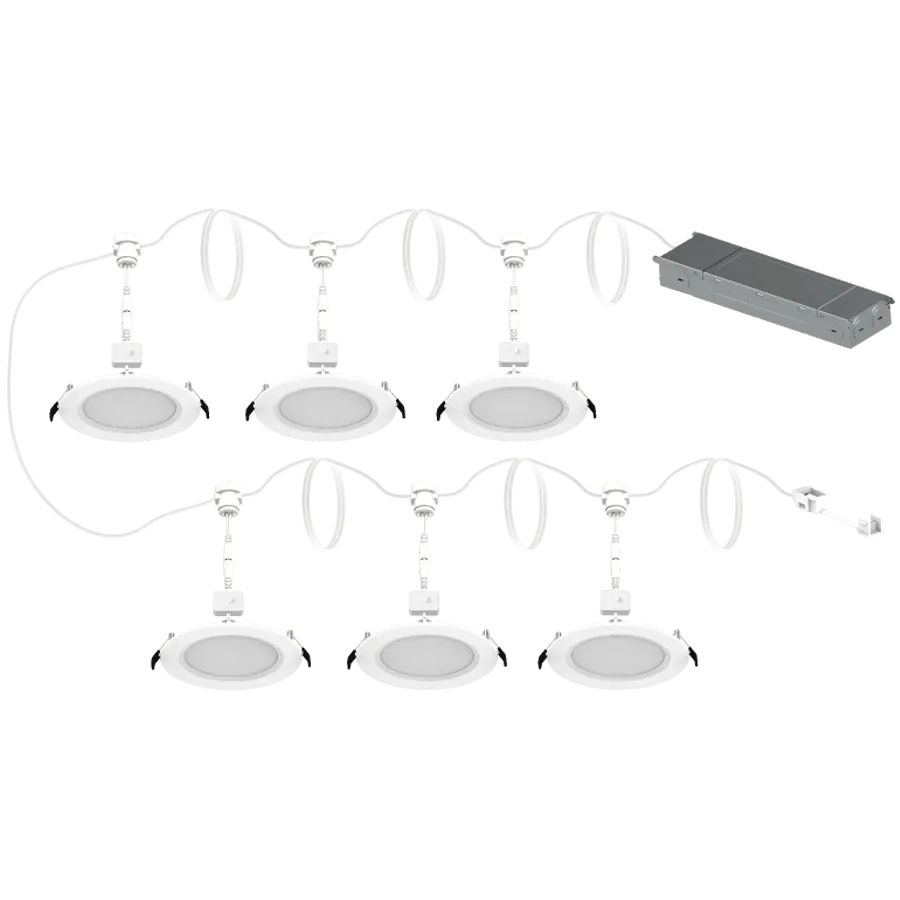

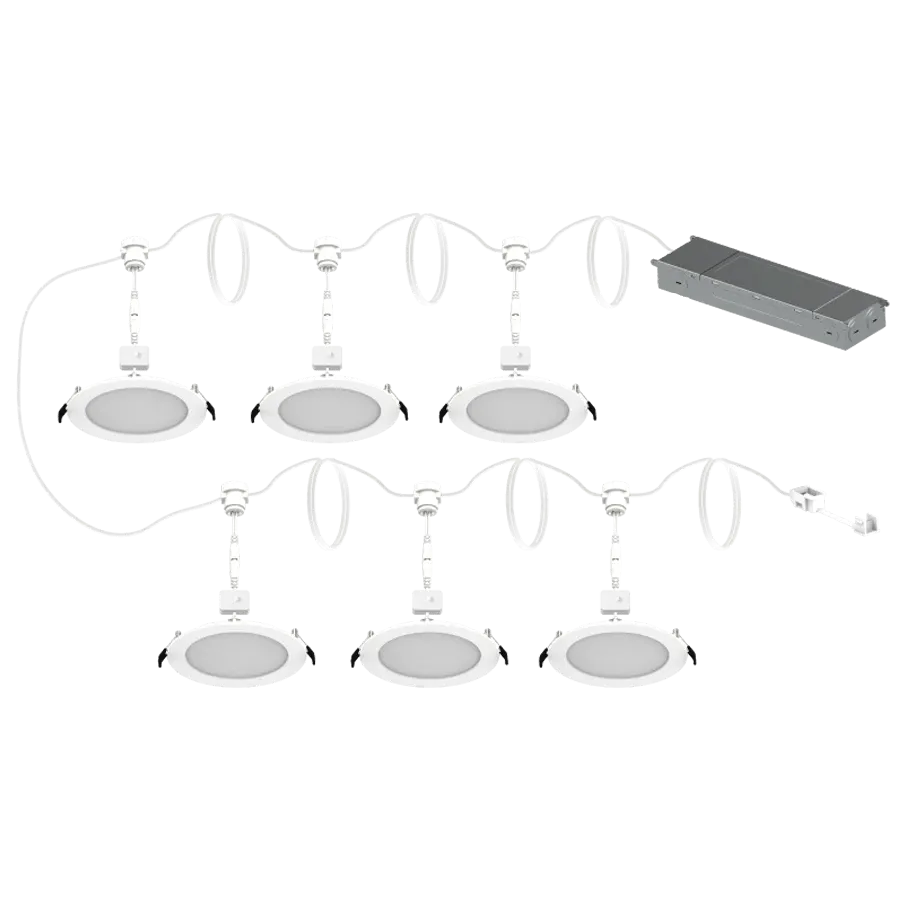

With 6 canless, quick-connect DAISY wafers controlled by only one driver, you’ll save on things like housings, wire, clamps, wire nuts, and most importantly, installation time.
- Power multiple wafers with a single driver (6" up to 8 pcs.)
- 5 color temperatures in 1 SKU (2700/3000/3500/4000/5000K)
- Super slim, edge-lit fixture
- No recessed housing or J-box required
- New construction or retrofit applications
Spec Sheets
Info
| Product Type |
Daisy Wafer Kit |
| Description |
Daisy wafer kit includes (1) 120-277V, 0-10V dimmable driver and (6) edge-lit CCT field adjustable wafers. |
| Wattage |
8.5W X 6 |
| Lumen |
3912 Total |
| Color Temp. |
Field Adjustable |
| CRI |
90 |
| L70 Lifespan |
50,000-Hour LED lifespan based on IES LM-70 results |
| Housing Material |
Polycarbonate |
| Finish |
White Trim |
| Style |
Smooth |
Additional Info
Compliance
| Safety Listing |
UL Listed |
| IC Rated |
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
|
| Energy Star Compliant |
Yes |
| Air Tight |
Yes |
|
Electrical
| Driver |
Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.60A, 208V: 0.36A, 240V: 0.32A, 277V: 0.28A |
| THD |
≤20% |
| Power Factor |
≥0.9 |
| Input Voltage |
120-277V |
|
Input Current @ 120V (mA)
|
|
| Input Current @ 208V (mA) |
356 mA
|
|
Input Current @ 240V (mA)
|
315 mA
|
|
Input Current @ 277V (mA)
|
282 mA
|
| Operating Temperature |
-13°F to 104°F |
| Dimming Driver |
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%. Note All values are typical (tolerance /- 10%)
|
|
