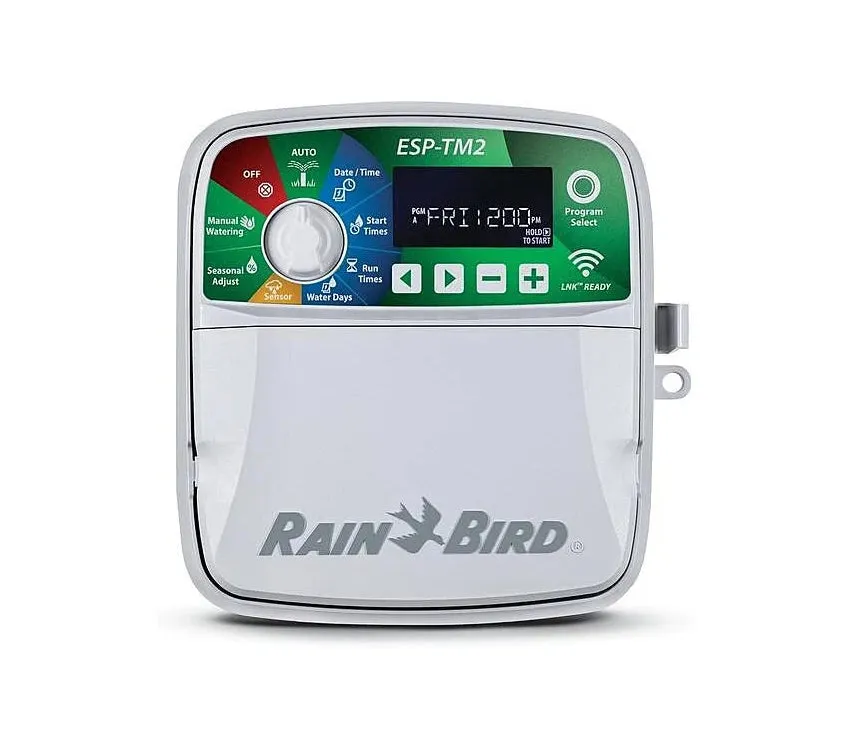

Rainbird ESP-TM2 Outdoor Irrigation Controller with Optional WIFI

Name: Rain Bird ESP-TM2 Outdoor Smart Irrigation Controller with Optional WIFI
SKU: 1136015

Simple, Flexible and Reliable for Residential Applications.

The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird’s legacy of The Intelligent Use of Water®, this controller offers simple water saving features that you will actually use. With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape’s needs. The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last! Best of all, you can upgrade the ESP-TM2 into a WiFi-enabled controller by simply installing a new LNK2 WiFi Module, without having to replace the entire unit. Make your controller SMART with EPA WaterSense certification by adding the LNK2 WiFi module and a WR2 rain sensor.

FEATURES

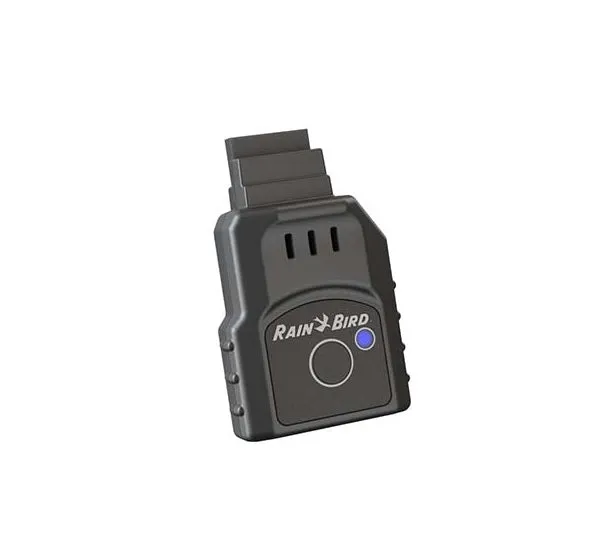

Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (with LNK2 WiFi Module sold separately)
Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water (with LNK2 WiFi Module sold separately)
4, 6, 8, and 12 station models to meet small or large residential irrigation needs
Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)

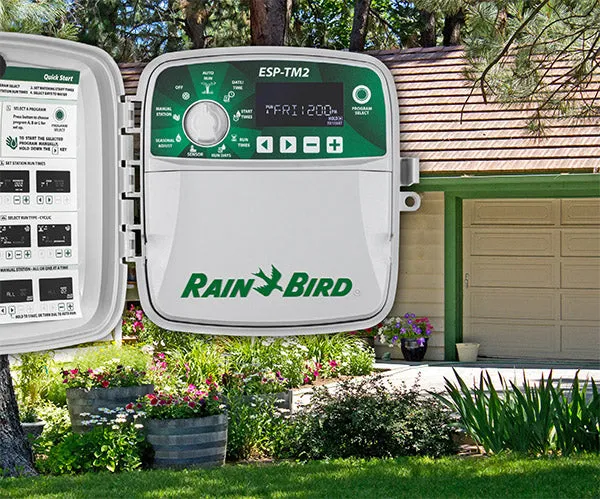

Easy to install indoors or outdoors
Quick programming in just 3 steps for ease of setup
3 available programs with up to 4 start times for each program to meet the needs of varied landscapes
One-touch manual watering capability for ease of use
Large back-lit LCD display for improved visibility in low-light and direct sun conditions
Contractor Default™ allows you to easily save and restore your custom schedule
Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
Seasonal Adjust by program allows you to easily reduce or increase watering by program

SPECIFICATIONS

Operating Temperature: Up to 149°F (65°C)
Storage Temperature: -40°F (-40°C) to 150°F (66°C)
Operating Humidity: 95% max @ 50°F to 120°F (10°C to 49°C) non-condensing environment

ELECTRICAL SPECIFICATIONS

Input required: 120V∿, 60Hz, 0.3A (International models: 230V∿, 50Hz, 0.136A)
Output: 24V∿, 60Hz, 1.0A (International models: 24V∿, 50-60Hz, 1.0A) for outdoor models, .6A maximum for indoor models.
Master Valve/Pump Start Relay
External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages

DIMENSIONS

Width: 7.92 in. (20.1 cm)
Height: 7.86 in. (20.0 cm)
Depth: 3.51 in. (9.0 cm)
Indoor Only Models (for some international markets): Height: 16.8 cm Width: 16.7 cm Depth: 4 cm
