Easy to install and commission for Rapid Shutdown PV arrays and NEC 2017 compliance

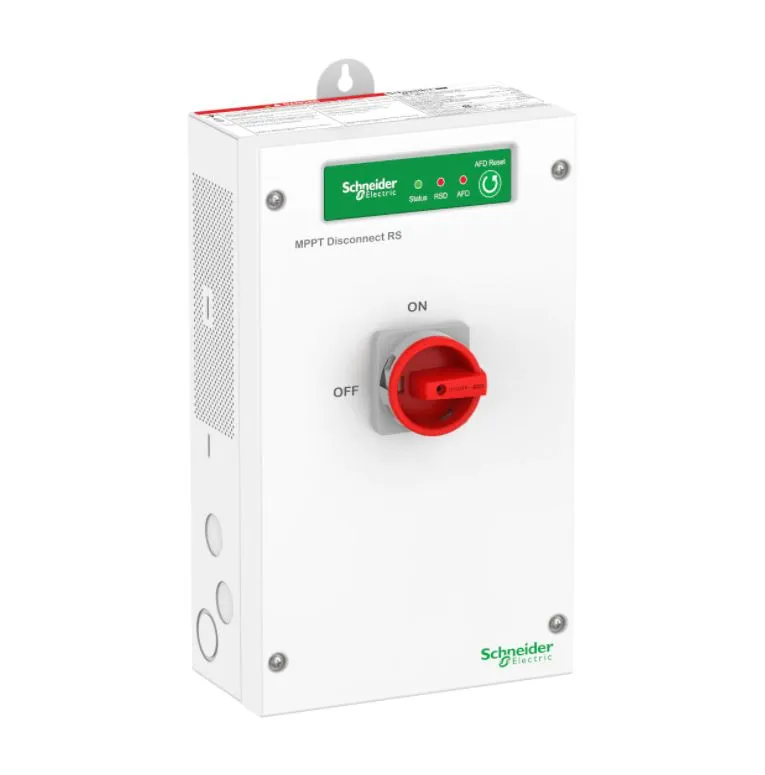

The MPPT Disconnect RS is an accessory for the Conext™ MPPT 60 150 and MPPT 80 600 charge controllers. It provides a disconnect for the photovoltaic (PV) circuits, an integrated Rapid Shutdown transmitter, and arc fault detection for enhanced safety.

With powerline communication, the MPPT Disconnect RS is compatible with Tigo® TS4-F (Fire Safety) for compliance with NEC 2017 670.12.

Why Choose MPPT Disconnect RS

Simplified NEC 2017 compliance

• Integrated Rapid Shutdown transmitter using power line communication (PLC)
• Compatible with Tigo® TS4-F (Fire Safety)
• Arc fault detection certified to UL 1699B
• Compatible with Conext™ MPPT 80 600 and MPPT 60 150 charge controllers

Integrated PV disconnect

• 2 leg disconnect, compliant with NEC 2017
• LOTO capability
• 2 input channels with up to 2 strings per channel

Flexible installation

• Multiple configurations with Conext™  and  charge controllers
• Scalable for larger installations
• Single Rapid Shutdown Initiator Switch can be used with multiple MPPT Disconnect RS for larger systems
• Side or bottom cable entry
• Mount on either side of the Conext™ MPPT80 600 or MPPT60 150 charge controllers
• Type 1 indoor rated

Remote initiator switch

• Outdoor rated Rapid Shutdown (RS) Initiator Switch
• One RS Initiator Switch can control multiple MPPT Disconnect RS for larger systems
